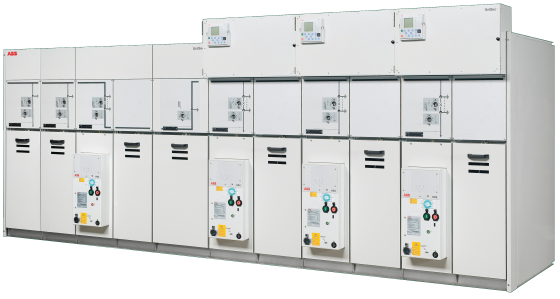

UniSec Panels
UniSec is indoor air insulated switchgears for medium voltage distribution systems up to 24kV, 1250A and 25kA. UniSec is designed with a wide range of functions and specifications suitable for numerous applications including industry, substations, data centers, small power generation systems, buildings & infrastructure and smart grids.
Main specifications:
- Manufacturing standard: IEC 62271-200
- Rated current: 630A to 1250A
- Rated short-circuit current: Up to 25kA/s.
| In | 630A đến 1250A |
| Standard | IEC 62271-200 |
Modular and flexible design ensures simple and easy installation, use and maintenance, Wide range of devices, SF6 load breakers, vacuum or SF6 circuit breakers, high-level safety for operators thanks to its internal anti-arc design and a wide range of mechanical interlocks. Classification of power supply continuity are LSC2A and LSC2B which both depend on the specific requirements of the customer.
