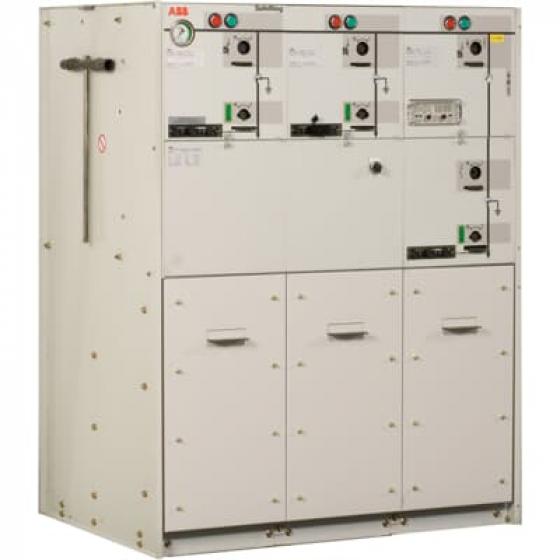

ABB RMU Panels
ABB SF6 insulated ring main units with brand name of SafeRing/ SafePlus are used for ring main power distribution system and power distribution substations up to 40.5kV.
Their outstanding strength is scientific and flexible design, configuration therefore can be changed in 18 different types which are suitable for almost power distribution applications from 6 to 40.5kV and expandable as requested.
SafeRing/SafePlus panels are designed in a completely sealed stainless steel system, containing the entire electrical parts and switching mechanism, ensuring safety in operation, not affected by environmental conditions, long lifetime and no maintenance required.
Standard: IEC 62271-200.
| In | 200A-630A |
| Standard | IEC 62271-200 |
Outstanding advantages of ABB's RMU panels: Fully sealed GIS design, highly reliable and safe operation, compact design, flexible configuration, no maintenance required, integrated remote intelligent control, etc.,
Maybe you are interested

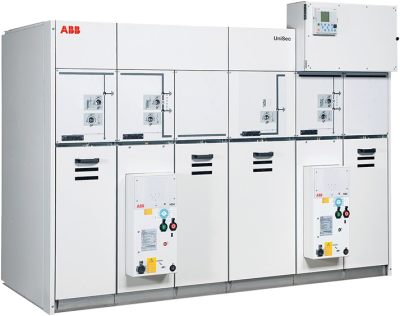

UniSec is indoor air insulated switchgears for medium voltage distribution systems up to 24kV, 1250A and 25kA. UniSec is designed with a wide range of functions and specifications suitable for numerous applications including industry, substations, data centers, small power generation systems, buildings & infrastructure and smart grids. <br> Main specifications: <br> - Manufacturing standard: IEC 62271-200 <br> - Rated current: 630A to 1250A <br> - Rated short-circuit current: Up to 25kA/s.
SM6 is a modular panel designed by Schneider. This panel has been type tested by independent testing laboratories and in operation worldwide for more than 25 years. <br> Main specifications: <br> - Standard: IEC 62271-200 <br> - Rated current: 630A to 1250A <br> - Rated short circuit current: Up to 25kA/s.

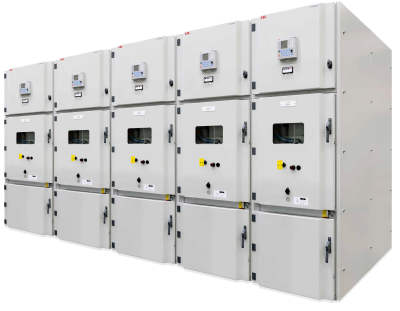

Unigears ZS1 is the switchgear panel designed and supplied by ABB for upstream power distribution systems up to 24kV, 4000 A and 63kA. <br> Unigears ZS3.2 is the switchgear panel designed and supplied by ABB for upstream power distribution systems up to 40.5kV, 3150A and 50kA. <br> These two types of panels are manufactured and supplied worldwide by ABB and there are more than 400.000 panels currently installed. <br> These two lines are designed in the form of single busbars, double busbars... <br> Specifications: <br> - Manufacturing standard: IEC 62271-200 <br> - Rated current: 630A to 1250A <br> - Rated short-circuit current: Up to 25kA per second <br> - Arc Protection class: A FLR <br> - Uninterruptible power supply class: LSC-2B.

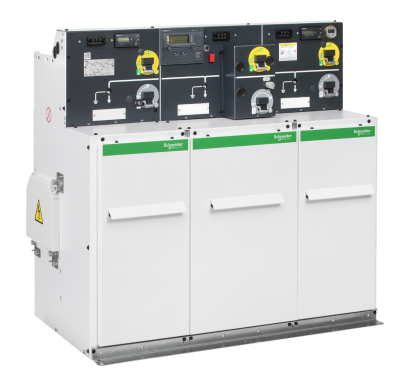

The RM6 panel is designed by Schneider and has been in operation for over 30 years worldwide. This line of panels was Type tested by independent laboratories. <br> Main specifications: <br> - Standard: IEC 62271-200<br> - Rated current: 630A <br> - Rated short circuit current: Up to 21kA/s <br> - Internal arc classification: Up to 20kA, AFLR with options. <br>
